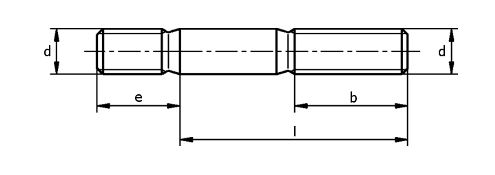

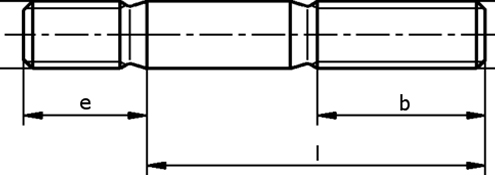

DIN 939 Studs, Metal End ≈ 1,25 d

d M 4 M 5 M 6 M 7 M 8
(8x1)
M 10
(10x1,25)
M 12
(12x1,25)
b
(l ≤ 125)
14 16 18 20 22 26 30
b
(125 < l ≤ 200)
20 22 24 26 28 32 36
b
(l > 200)
_ _ _ _ _ 45 49
e 5 6,5 7,5 9 10 12 15
l 20-40 22-50 25-60 28-70 30-80 35-100 40-120


d M 14
(14x1,5)
M 16
(16x1,5)
M 18
(18x1,5)
M 20
(20x1,5)
M 22
(22x1,5)
M 24
(24x2)
M 27
(27x2)
b
(l ≤ 125)
34 38 42 46 50 54 60
b
(125 < l ≤ 200)
40 44 48 52 56 60 66
b
(l > 200)
53 57 61 65 69 73 79
e 18 20 22 25 28 30 35
l 45-140 50-160 55-180 60-200 65-200 70-200 75-280


Material Types
-
  Steel (5.6, 5.8, 8.8, 10.9)
  -   Stainless Steel

Coating Types
-
  Electrolytically Plated (Zn, ZnNi)

This product can also be provided in special dimensions and features.
