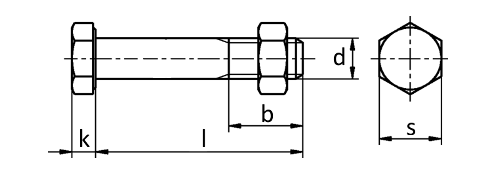

| d | M 12 | M 16 | M 20 | M 22 | M 24 | M 27 | M 30 |
| P (pitch) | 1,75 | 2 | 2,5 | 2,5 | 3 | 3 | 3,5 |
| k | 8 | 10 | 13 | 14 | 15 | 17 | 19 |
| b | 17,75 | 21 | 23,5 | 25,5 | 26 | 29 | 30,5 |
| s | 19 | 24 | 30 | 34 | 36 | 41 | 46 |
| l | 30-120 | 35-150 | 40-175 | 40-200 | 45-200 | 60-200 | 80-200 |
| Material Types |
- |
Steel (4.6, 5.6) | |
| Coating Types |
- |
Electrolytically Plated (Zn, ZnNi) | |
| - | Hot Dip Galvanized (HDG) |
||
| - |
Zinc-Flake Coated (flZnyc, flZnnc) |
