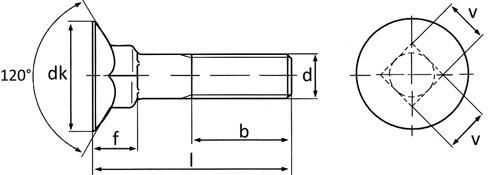

| d | M 6 | M 8 | M 10 |
| P (pitch) | 1 | 1,25 | 1,5 |
| dk (max) | 16,55 | 20,65 | 24,65 |
| f (max) | 7,45 | 9,45 | 11,55 |
| v (max) | 6,48 | 8,58 | 10,58 |
| b (l ≤ 125) |
18 | 22 | 26 |
| b (125 < l ≤ 200) |
24 | 28 | 32 |
| b (l > 200) |
_ | 41 | 45 |
| l | 30-60 | 30-80 | 40-100 |
| Material Types | - |
Steel (3.6, 4.6) | |
| Coating Types |
- |
Electrolytically Plated (Zn, ZnNi) | |
| - | Hot Dip Galvanized (HDG) |
||
| - |
Zinc-Flake Coated (flZnyc, flZnnc) |
