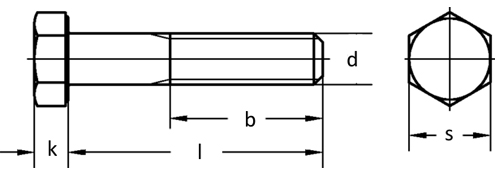

| d | M 5 | M 6 | M 8 | M 10 | M 12 | M 16 | M 20 | M 24 | M 27 |
| P (pitch) | 0,8 | 1 | 1,25 | 1,5 | 1,75 | 2 | 2,5 | 3 | 3 |
| b (l ≤ 125) |
16 | 18 | 22 | 26 | 30 | 38 | 46 | 54 | 60 |
| b (125 < l ≤ 200) |
22 | 24 | 28 | 32 | 36 | 44 | 52 | 60 | 66 |
| b (l > 200) |
35 | 37 | 41 | 45 | 49 | 57 | 65 | 73 | 79 |
| k | 3,5 | 4 | 5,3 | 6,4 | 7,5 | 10 | 12,5 | 15 | 17 |
| s | 8 | 10 | 13 | 17 | 19 | 24 | 30 | 36 | 41 |
| l | 25-50 | 30-60 | 35-80 | 40-100 | 45-120 | 55-160 | 65-200 | 80-240 | 90-300 |
| d | M 30 | M 33 | M 36 | M 39 | M 42 | M 45 | M 48 | M 52 |
| P (pitch) | 3,5 | 3,5 | 4 | 4 | 4,5 | 4,5 | 5 | 5 |
| b (l ≤ 125) |
66 | 72 | 78 | 84 | _ | _ | _ | _ |
| b (125 < l ≤ 200) |
72 | 78 | 84 | 90 | 96 | 102 | 108 | 116 |
| b (l > 200) |
85 | 91 | 97 | 103 | 109 | 115 | 121 | 129 |
| k | 18,7 | 21 | 22,5 | 25 | 26 | 28 | 30 | 33 |
| s | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| l | 90-300 | 100-300 | 110-300 | 120-300 | 130-300 | 140-300 | 150-300 | 160-300 |
| Material Types | - |
Steel (3.6) | |
| Coating Types |
- |
Electrolytically Plated (Zn, ZnNi) | |
| - | Hot Dip Galvanized (HDG) |
||
| - |
Zinc-Flake Coated (flZnyc, flZnnc) |
