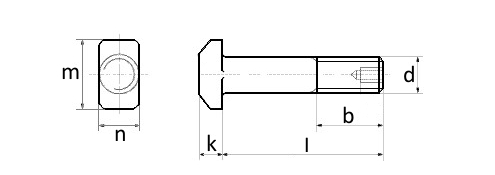

| d | M 8 | M 10 | M 12 | M 16 | M 20 | M 24 | M 30 | M 36 |
| P (pitch) | 1,25 | 1,5 | 1,75 | 2 | 2,5 | 3 | 3,5 | 4 |
| k | 5,5 | 7 | 8 | 10,5 | 13 | 15 | 19 | 23 |
| n | 8 | 10 | 12 | 16 | 20 | 24 | 30 | 36 |
| m | 18 | 21 | 26 | 30 | 36 | 43 | 54 | 56 |
| b (l ≤ 120) |
22 | 26 | 30 | 38 | 46 | 54 | 66 | 78 |
| b (120 < l ≤ 200) |
_ | _ | _ | 44 | 52 | 60 | 72 | 84 |
| b (l > 200) |
_ | _ | _ | _ | _ | _ | _ | _ |
| l | 30-80 | 30-100 | 45-120 | 50-160 | 60-200 | 70-200 | 90-200 | 120-200 |
| d | M 42 | M 48 | M 56 | M 64 | M 72 | M 80 | M 90 | M 100 |
| P (pitch) | 4,5 | 5 | 5,5 | 6 | 6 | 6 | 6 | 6 |
| k | 26 | 30 | 35 | 40 | 45 | 50 | 55 | 62 |
| n | 42 | 48 | 56 | 64 | 72 | 80 | 90 | 100 |
| m | 80 | 88 | 102 | 115 | 128 | 140 | 155 | 170 |
| b (l ≤ 120) |
90 | _ | _ | _ | _ | _ | _ | _ |
| b (120 < l ≤ 200) |
96 | 108 | 124 | 130 | _ | _ | _ | _ |
| b (l > 200) |
109 | 121 | 137 | 143 | 169 | 185 | 205 | 225 |
| l | 120-400 | 150-400 | 180-400 | 200-400 | 260-400 | 280-400 | 320-400 | 360-400 |
| Material Types | - |
Steel (4.6, 8.8) | |
| - | Stainless Steel |
||
| Coating Types |
- |
Electrolytically Plated (Zn, ZnNi) | |
| - | Hot Dip Galvanized (HDG) |
||
| - |
Zinc-Flake Coated (flZnyc, flZnnc) |
