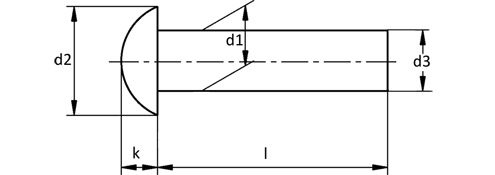

DIN 124 Round Head Rivets

d1 10 12 14 16 18 20 22 24 27 30 33 36
d2 16 19 22 25 28 32 36 40 43 48 53 58
d3 (min) 9,4 11,3 13,2 15,2 17,1 19,1 20,9 22,9 25,8 28,6 31,6 34,6
k 6,5 7,5 9 10 11,5 13 14 16 17 19 21 23
l 16-50 18-60 20-70 24-80 26-90 30-100 34-110 38-120 42-135 50-150 55-160 62-160

This product can also be provided in special dimensions and features.
